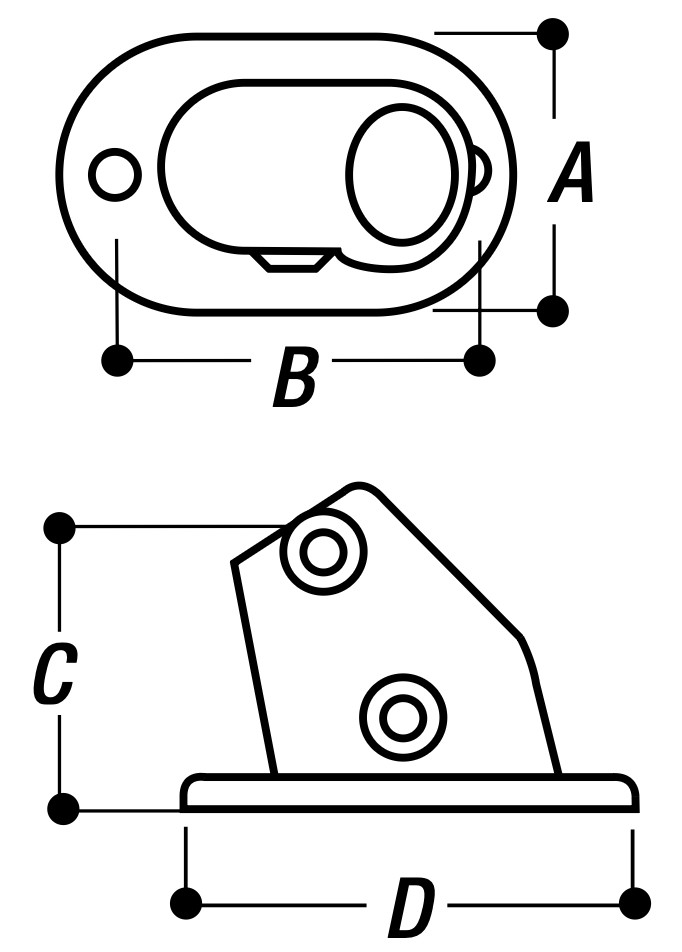

Similar to a type C53, it is used to set the upright at an angle between 11º–30º. This fitting should only be subjected to light loads which cannot be positioned at 90º to the applied load. For greater loads or other tube sizes a type C12 flange should be used with the upright bent to the required angle Ø indicates the diameter of the fixing hole.

FastClamp C59G40 is available to request.
